Ideal for civil engineering sites!
Precision of 0.1%F.S.
High-accuracy voltage output type
(TD4310 series)
The TD4310 immersion-type water level gauge uses a high-accuracy semiconductor pressure sensor to detect water levels. It has a built-in amplifier (converter), meaning no external converter is required. It also features a built-in lightning protection circuit.
Top-class accuracy
- JTEKT's high-accuracy TD8300 and TD4310 water level gauges achieve an industry-leading accuracy of ±0.1%F.S., which is made possible by correcting the output from the pressure sensor located inside the gauge body. (See the figure on the right)
* Product accuracy based on in-house measurement.
- Accuracy is calculated based linearity, hysteresis and repeatability.

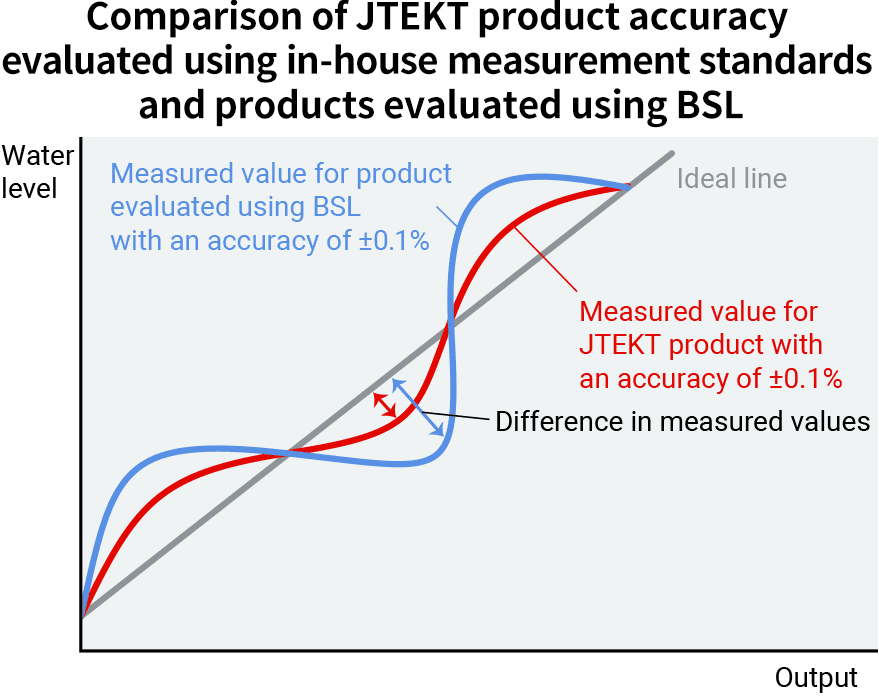

Of these, linearity has the most impact, and while this is often expressed as BSL (best fit line) in countries other than Japan, JTEKT calculates it under more linear conditions, as shown in the figure on the right (red line).
* Even with the same accuracy of ±0.1%, there is a difference of approximately twice the accuracy when a product evaluated using BSL is measured using JTEKT’s standard method.
Product specifications
| Model | TD4310 (High-accuracy type) | ||||||
|---|---|---|---|---|---|---|---|
| Class | 001G | 003G | 005G | 010G | 020G | 030G | 050G |
| Measurable range (m) | 0〜1 | 0〜3 | 0〜5 | 0〜10 | 0〜20 | 0〜30 | 0〜50 |
| Applications | Fresh water, general waste water *1 (Preset density: 1.000) | ||||||
| Overload (%F.S.) | 200 | 500 | 300 | ||||
| Accuracy (%F.S.) | ±0.1 | ||||||
| Temperature characteristics (%F.S./℃) | ±0.004 | ||||||
| Output | DC1〜5V (3-wire type) | ||||||
| Power source supply voltage | DC12V±1V | ||||||
| Power consumption | Less than 7 mA | ||||||
| Operating temperature range | 0〜50℃ (No freezing) | ||||||
| Storage temperature range | -10〜60℃ (No freezing or condensation) | ||||||
| Material | Body, diaphragm: SUS316L, O-ring: fluororesin | ||||||
| Cable material | Reference pipe and stainless wires covered with EP rubber sheath | ||||||
| Cable length | Can be specified in 1 m increments for lengths under 50 m, 5 m increments for lengths over 50 m, and in 10 m increments for lengths over 100 m *2 | ||||||
| Weight | Body: Approx. 350g Cable: Approx. 200g/m | ||||||
*1 When used with general wastewater, please use a sewage cap.
*2 Contact our sales department for lengths exceeding 200 m.
