Development of an X-Ray Tube Bearing Unit
for X-Ray Diagnostic Imaging Systems:
Contributing to Quiet Operation and Energy Efficiency
- Customer outlineX-ray tube Manufacturer
- ProductX-Ray Tube Bearing Unit
-
Problems
- Need to reduce operation noise
- Need to reduce electric power consumption
- Need to improve durability
- Need to improve maintenability
-
Solutions
- Optimize internal design (ball PCD and raceway curvature) for low noise
- Apply special coating technology
An X-ray tube is a vacuum device that converts electrical energy into X-rays.
X-rays are used in a wide variety of fields, including medical imaging (radiography, CT scanners) and industrial non-destructive inspection.

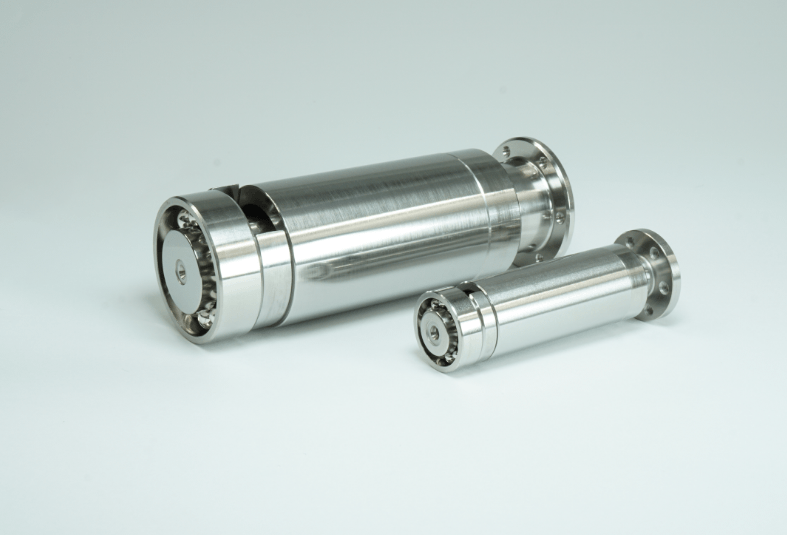

A full complement type ball bearing with flange shaft is adopted into X-Ray tube bearing unit.
These bearings must function well under very severe conditions (In vacuum, high speeds, high temperature, high loads).
Achievements
- Improved operation noise
The internal design (ball PCD and raceway curvature) was optimized in same size with current X-Ray tube bearing unit.

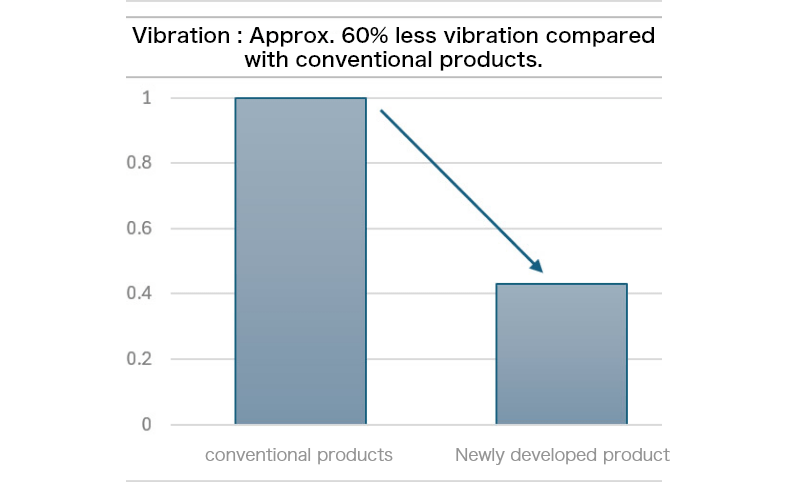

Vibration : Approx. 60% less vibration compared with conventional products.
- Greater energy efficiency and longer durability life
Special coating technology : Modify lubrication film composition and optimize lubrication film thickness.

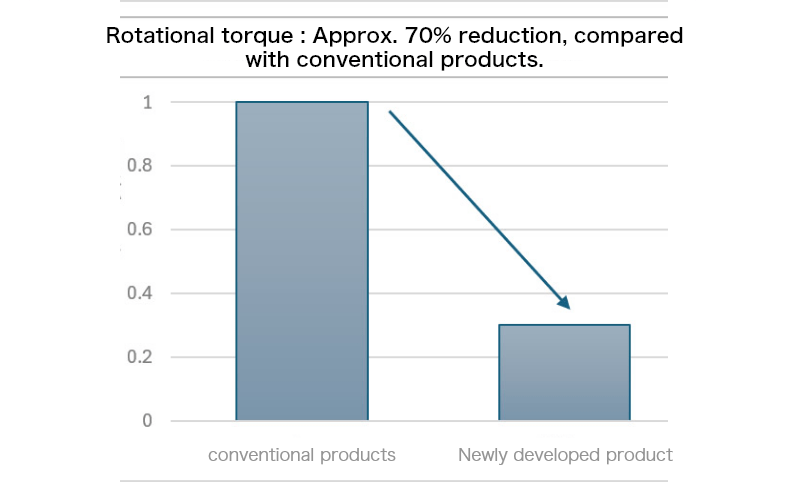

Rotational torque : Approx. 70% reduction, compared with conventional products.
- Improved maintenability
A longer durability life also improve the maintenability.
Comments from Our Customers
Quieter operation reduce stress for patients and longer durability life improves the maintenability by healthcare professionals.
Medical device manufacturer
Quieter X-ray diagnostic imaging systems contributes to reduce the stress for both patients and medical personnel. In battery-powered mobile X-ray systems, the longer operation by the increased energy efficiency and longer durability life are helpful for helthcare professinals.
X-ray tube manufacturer
We expect strong demand not only in Japan and the U.S. but also in fast-growing markets such as China.
A Message from JTEKT
Since 1995, JTEKT has been developing and manufacturing X-ray tube bearing units, building a strong track record in CT scanners and other medical devices. Leveraging this experience, we have now developed a low-noise, low-torque X-ray tube bearing unit that delivers quieter operation in general imaging systems and contributes to energy savings in battery-powered mobile systems.
Industrial and Bearing Business Unit
Industrial Solutions Engineering Dept.
Growth Fields Engineering Office
Semiconductor - Medical Section
Product
Full-complement type ball bearing unit

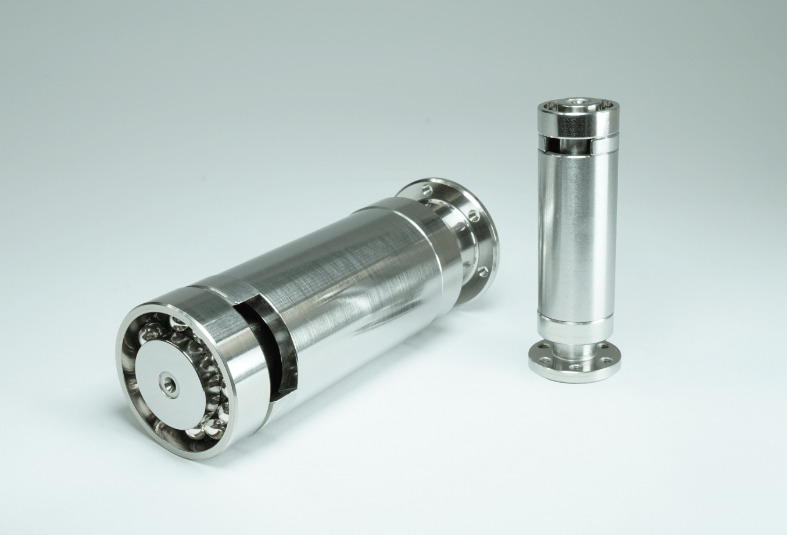

A full complement type ball bearing with flange shaft is adopted into rotating anode X-ray tube bearing unit.
These bearings must function well under very severe conditions (in vacuum, high speeds, high temperature, high loads).
Relevant industries: Medical devices
Related applications: Vacuum environments
